TC M3 060 04 103
Termékszám:
TCM306004103
11
TC M3 060 04 103
Termékszám:
TCM306004103
Straight Styli; base: stainless steel; stem: carbon fiber; ball: ruby
Straight stylus with low weight and extreme rigidity.
The carbon fiber stem with its excellent physical properties is mainly used for styli with excess length.
Ruby balls of the highest quality from Ø6,0mm to Ø12,0mm are used for these styli.
Other dimensions can be requested via the configurator or by e-mail.

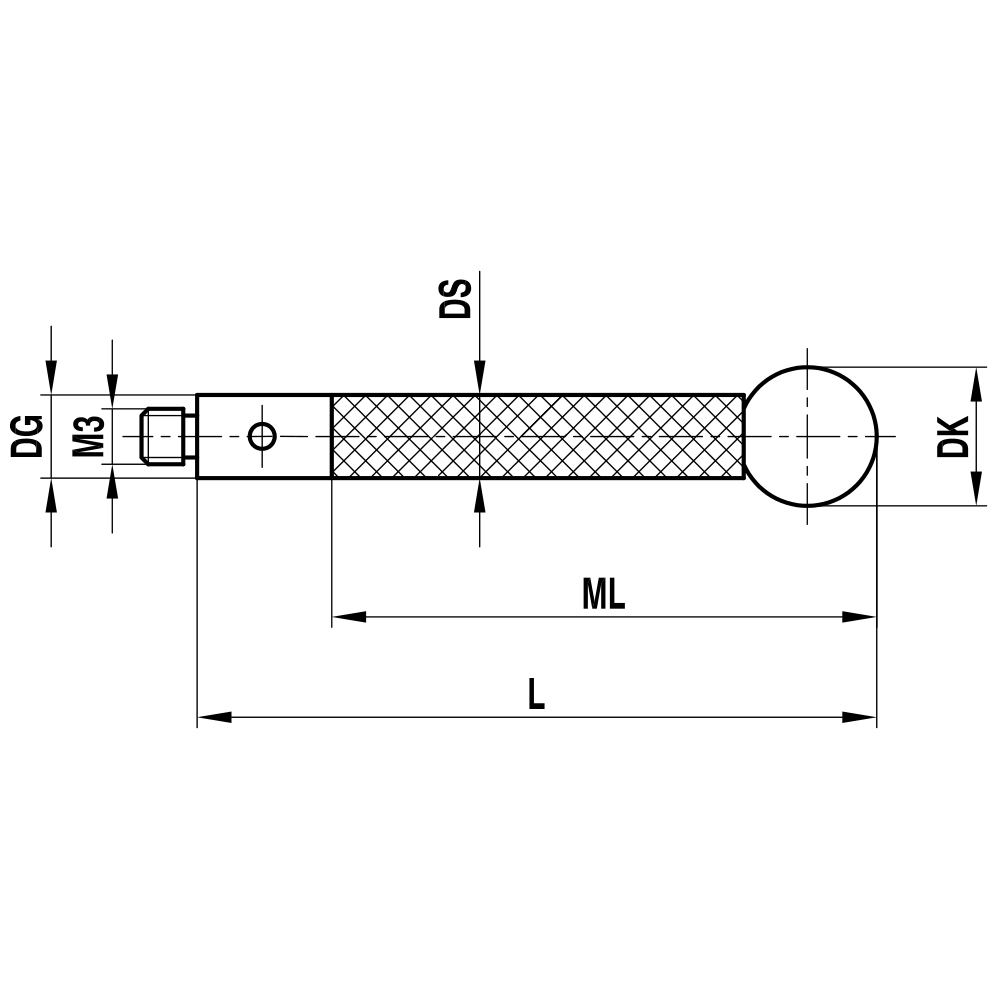

| Thread size: | M3 |
|---|---|
| DK: | 6.0 |
| L: | 103.0 |
| DG: | 4.0 |
| ML: | 93.0 |
| DS: | 4.0 |
| Stem Material: | carbon fiber |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 3.2 |
| Compatible with: | Mitutoyo, Renishaw |
| Renishaw-No.: | A-5003-4861 |
| itp_product_attributes_mitutoyo_no: | K651307 |
