TC M3 080 05 125
Termékszám:
TCM308005125
11
Suitable for Zeiss: 626103-0800-125
Suitable for Zeiss: 626103-0800-125
TC M3 080 05 125
Termékszám:
TCM308005125

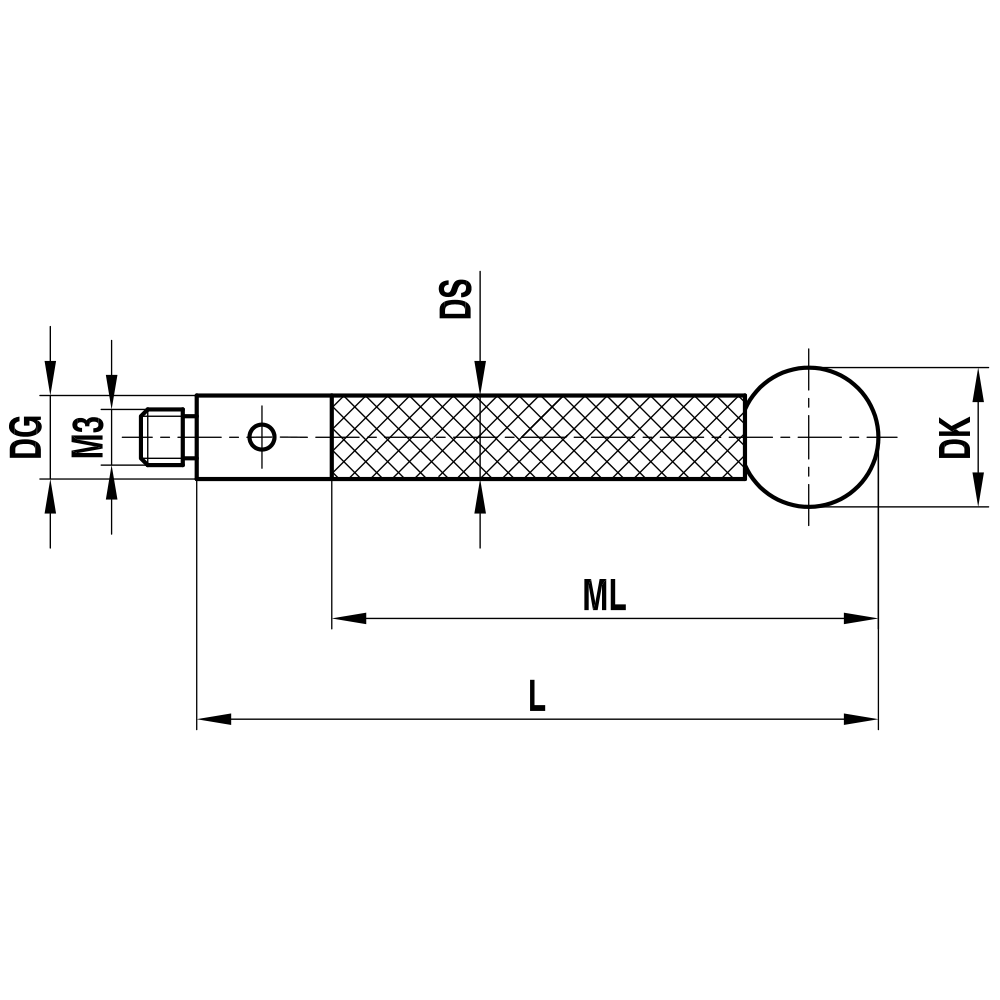

Straight Styli; base: titanium; stem: carbon fiber; ball: ruby
Straight stylus with low weight and extreme rigidity.
The carbon fiber stem with its excellent physical properties is mainly used for styli with excess length.
The highest quality Ø8,0mm ruby balls are used for these styli. Other dimensions can be requested via the configurator or by e-mail.
| Thread size: | M3 XXT |
|---|---|
| DK: | 8.0 |
| L: | 125.0 |
| DG: | 5.0 |
| ML: | 125.0 |
| DS: | 5.0 |
| Stem Material: | carbon fiber |
| Base Material: | titanium |
| Probe ball material: | ruby |
| Súly: | 3.1 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 626103-0800-125 |
| Renishaw-No.: | A-5004-0808 |
