TC M3 S30 05 030
Termékszám:
TCM3S3005030
11
TC M3 S30 05 030
Termékszám:
TCM3S3005030
Straight Styli / Star Styli ; base: titanium; stem: carbon fiber; ball: silicon nitride
Straight stylus for clamping star styli. It provides additional probing option in the Z direction. This stylus has an extended thread to match the height of the star stylus.
Ruby balls or silicon nitride are available as probing elements.

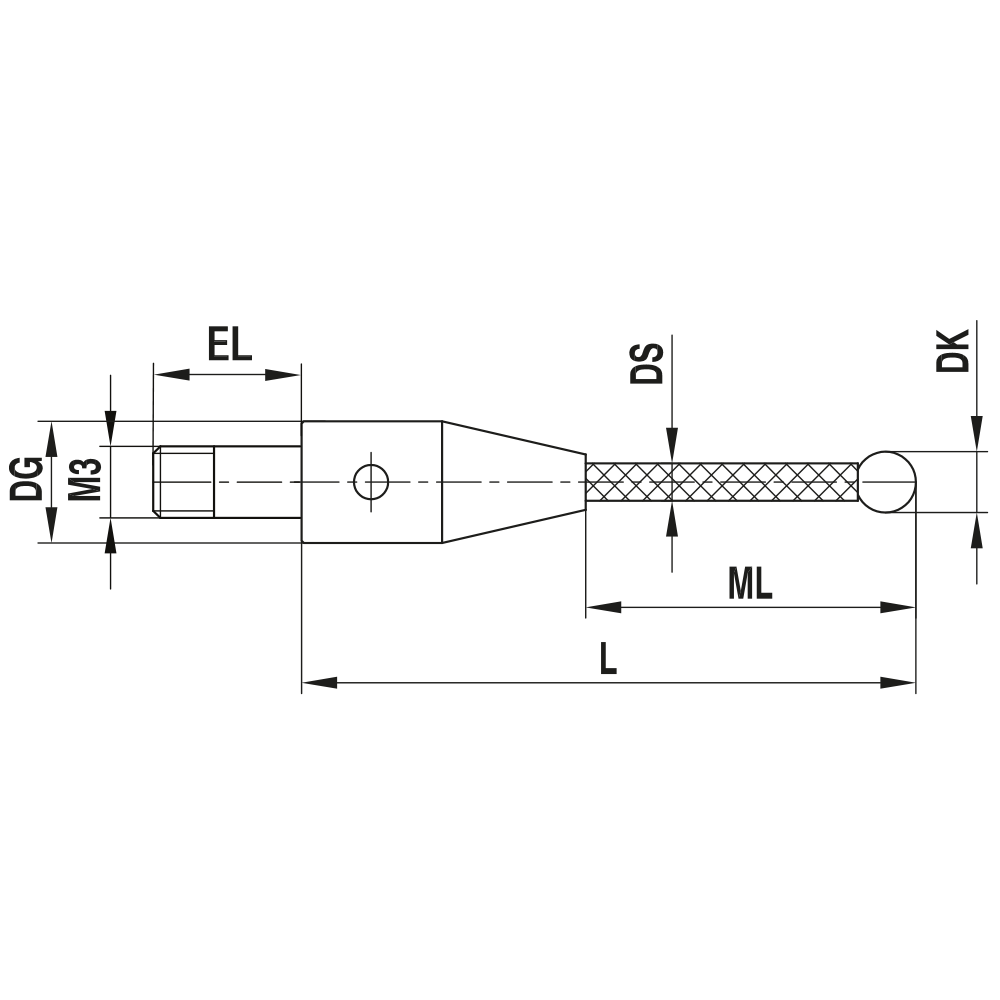

| Thread size: | M3 XXT |
|---|---|
| DK: | 3.0 |
| L: | 30.0 |
| DG: | 5.0 |
| EL: | 8.0 |
| ML: | 21.0 |
| DS: | 2.0 |
| Stem Material: | carbon fiber |
| Base Material: | titanium |
| Probe ball material: | silicon nitride |
| Súly: | 1 |
