TC M3 S50 05 075/K
Termékszám:
TCM3S5005075/K
11
Suitable for Zeiss: 626103-0500-075
Suitable for Zeiss: 626103-0500-075
TC M3 S50 05 075/K
Termékszám:
TCM3S5005075/K

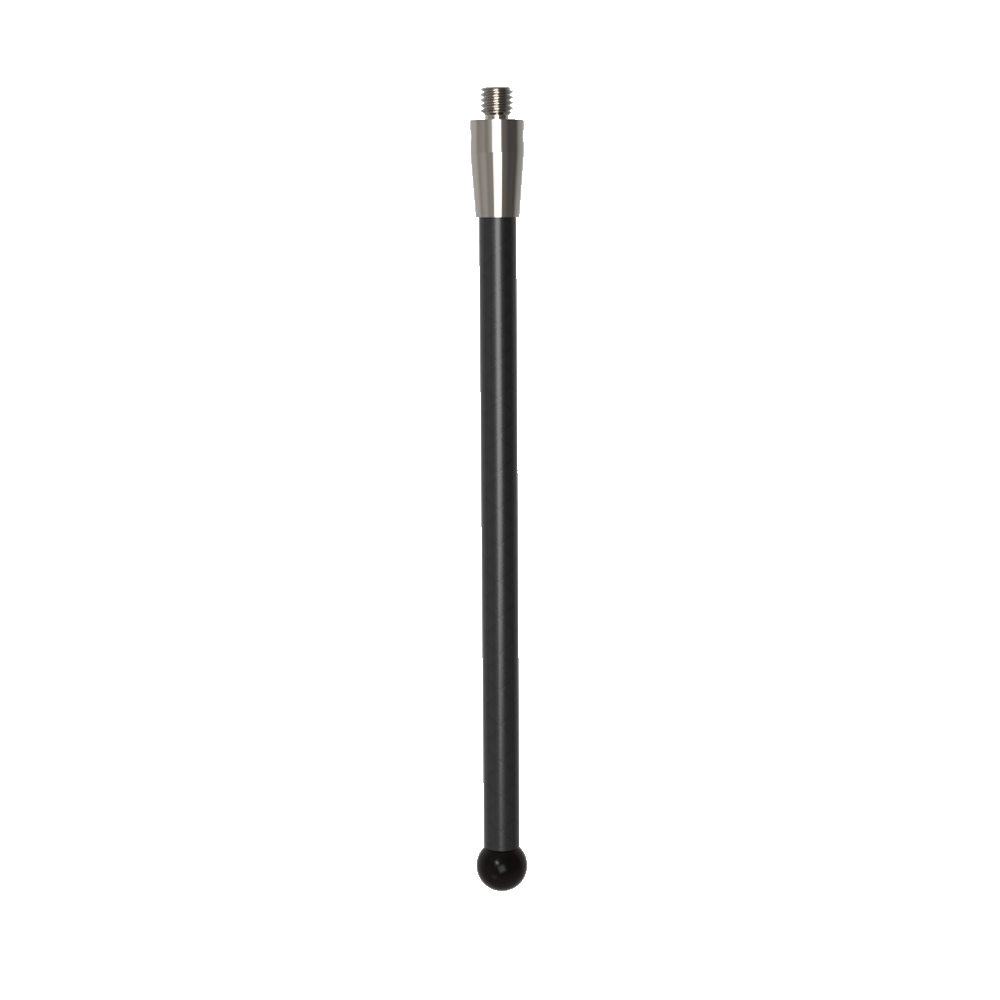

Straight Styli; base: titanium; stem: carbon fiber; ball: silicon nitride
Straight stylus with low weight and extreme rigidity.
The carbon fibre stem, with its excellent physical properties, is mainly used for styli with excess length.
The silicon nitride balls are particularly suitable for scanning untreated aluminium workpieces.
Other dimensions can be requested via the configurator or by e-mail.

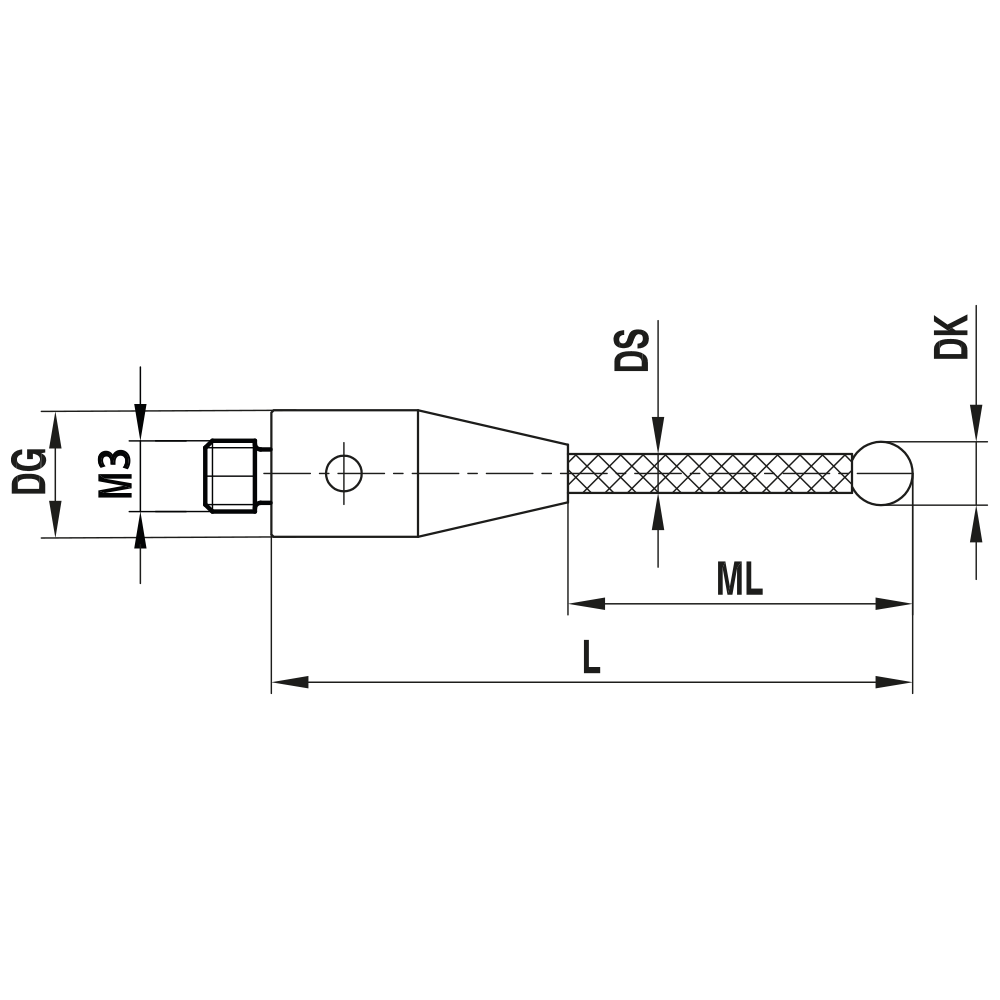

| Thread size: | M3 XXT |
|---|---|
| DK: | 5.0 |
| L: | 75.0 |
| DG: | 5.0 |
| ML: | 66.0 |
| DS: | 3.5 |
| Stem Material: | carbon fiber |
| Base Material: | titanium |
| Probe ball material: | silicon nitride |
| Súly: | 1.8 |
| Compatible with: | Zeiss |
| Zeiss No.: | 626103-0500-075 |
