TH M2 005 03 019
Termékszám:
THM200503019
11
Suitable for Zeiss: 626120-0215-000
Suitable for Zeiss: 626120-0215-000
TH M2 005 03 019
Termékszám:
THM200503019

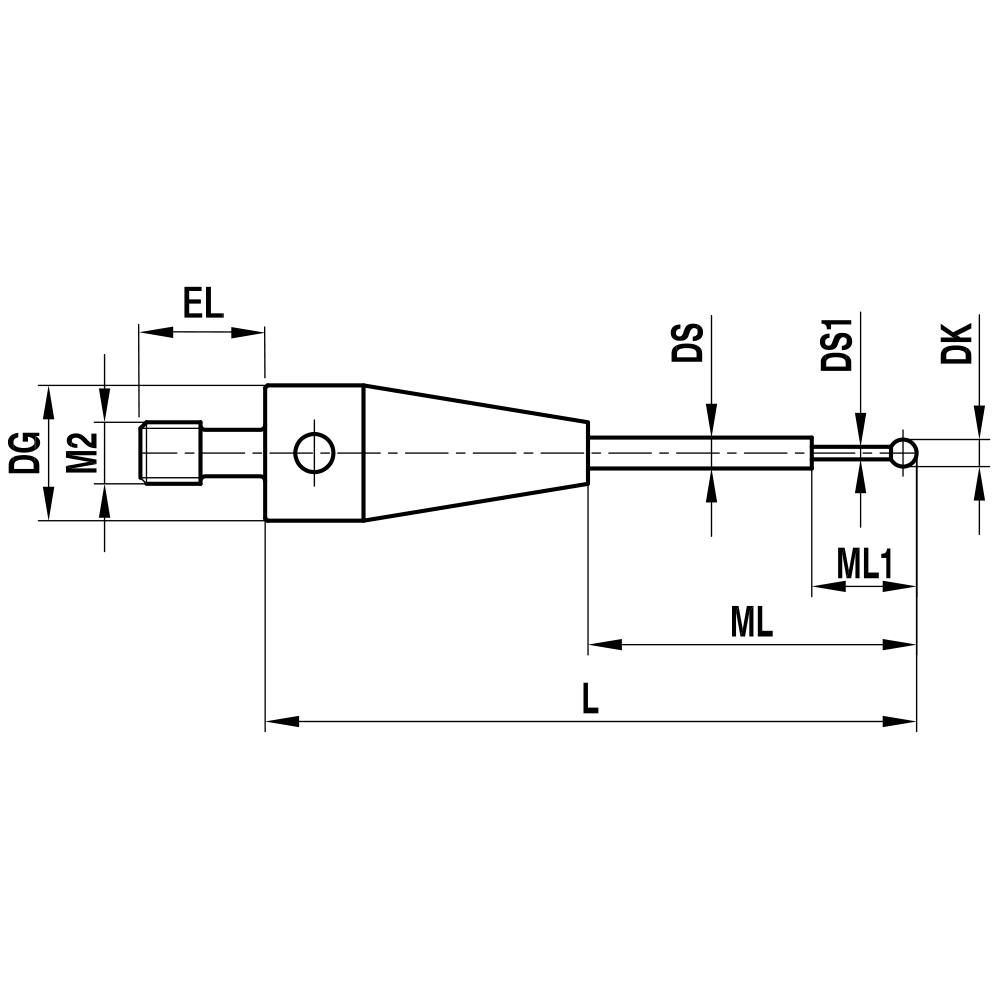

Straight Styli / Star styli; base: stainless steel; stem: carbide; ball: ruby
Straight stylus used to clamp star styli. It provides additional probing capability in the Z direction. The stylus has an extended thread to match the height of the star stylus.
Ruby balls are available as the probe element.
| Thread size: | M2 |
|---|---|
| DK: | 0.5 |
| L: | 19.0 |
| DG: | 3.0 |
| EL: | 5.0 |
| ML: | 11.5 |
| ML (1): | 7.0 |
| DS: | 0.7 |
| DS (1): | 0.4 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 0.4 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 626120-0215-000 |
| Renishaw-No.: | A-5003-4790 |
