TH M2 010 03 021
Termékszám:
THM201003021
11
Suitable for Zeiss: 623062-3135-000
Suitable for Zeiss: 623062-3135-000
TH M2 010 03 021
Termékszám:
THM201003021

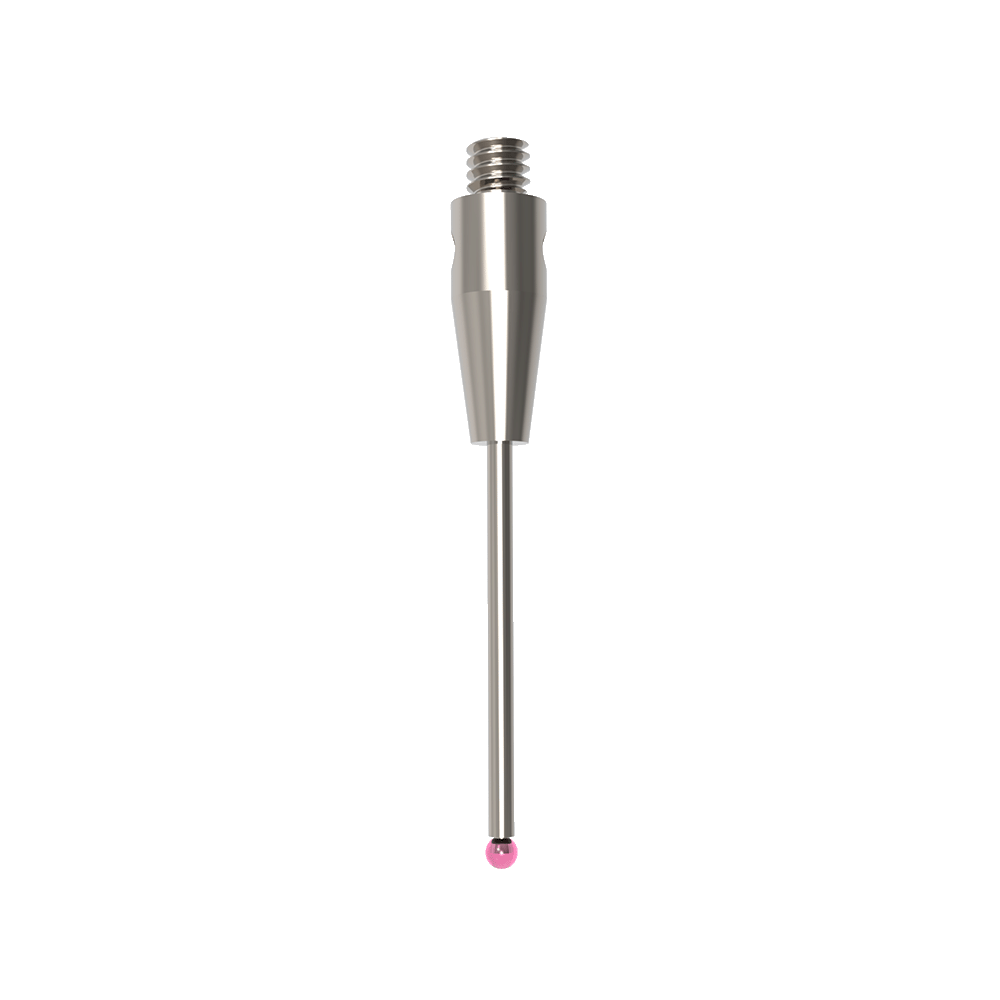

Straight Styli; base: stainless steel; stem: carbide; ball: ruby
Straight stylus for everyday standard use.
Due to its extreme rigidity, the carbide stem enables a wide range of dimensions. Ruby balls of the highest quality from Ø0,5mm to Ø5,0mm are used for these styli.
Further sizes can be requested via the configurator or by e-mail.

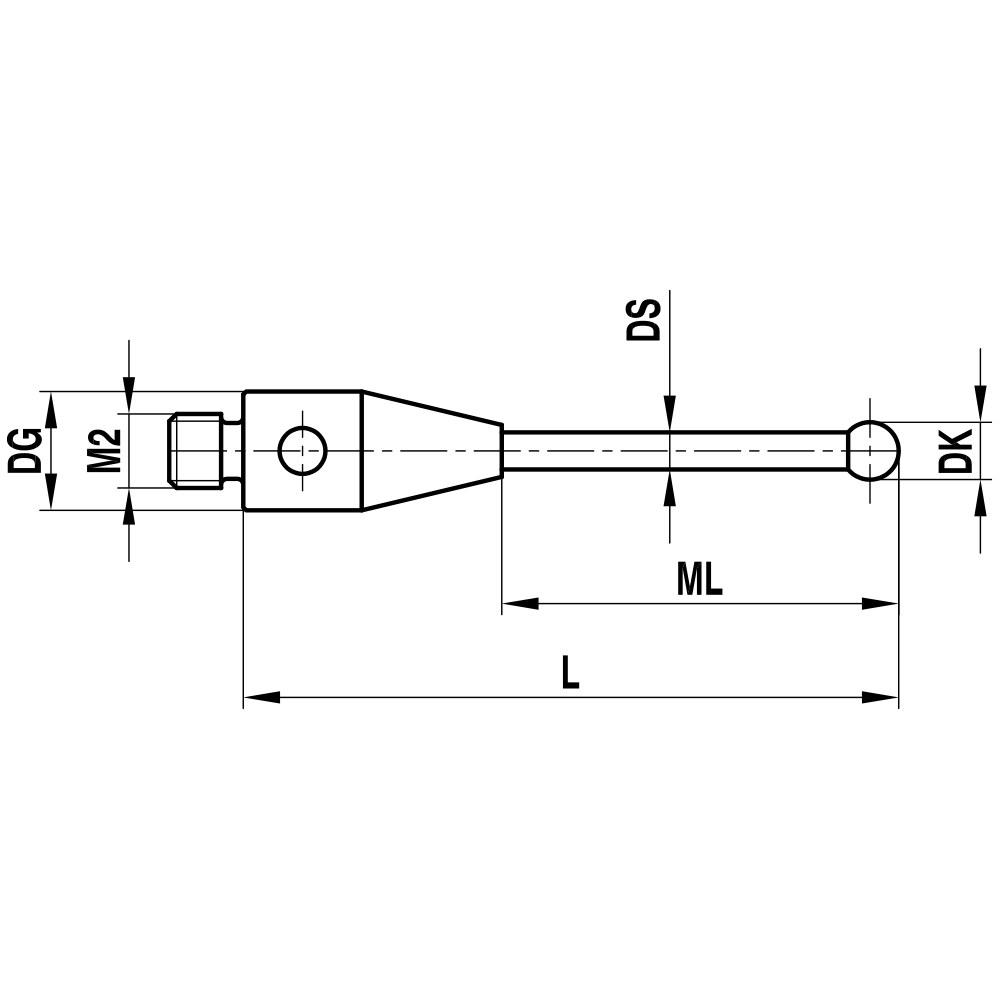

| Thread size: | M2 |
|---|---|
| DK: | 1.0 |
| L: | 20.5 |
| DG: | 3.0 |
| ML: | 13.0 |
| DS: | 0.8 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 0.4 |
| Compatible with: | Hexagon, Mitutoyo, Renishaw, Zeiss |
| Zeiss No.: | 623062-3135-000 |
| Renishaw-No.: | A-5003-0033 |
| Hexagon-No.: | 03969271 |
| itp_product_attributes_mitutoyo_no: | K651249 |
