TH M3 003 04 022
Termékszám:
THM300304022
11
Suitable for Zeiss: 602030-8121-000
Suitable for Zeiss: 602030-8121-000
TH M3 003 04 022
Termékszám:
THM300304022

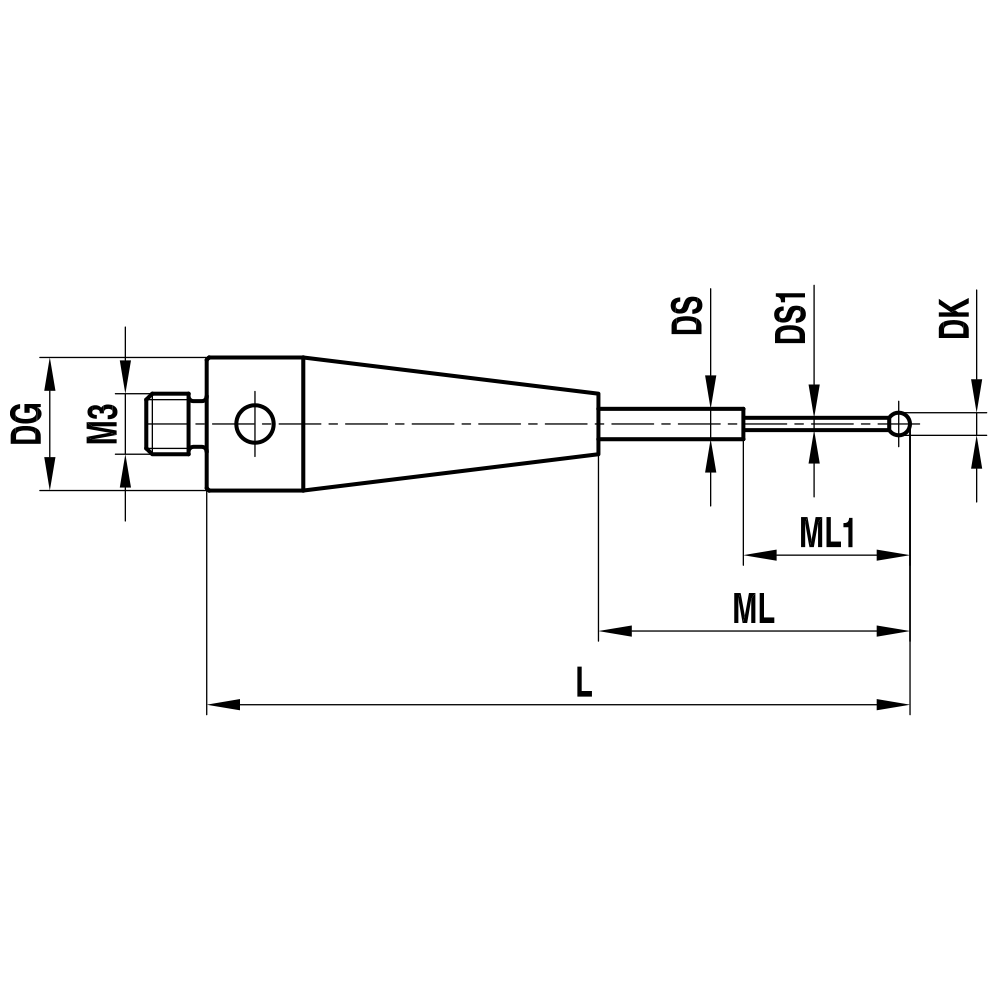

Straight Styli; base: stainless steel; stem: carbide; ball: ruby
Straight stylus for everyday standard use.
The carbide stem with its extreme rigidity enables a wide range of dimensions. The stems can be single or multi-stepped. Ruby balls of the highest quality from Ø0,2mm to Ø1,0mm are used for these styli.
Other sizes can be requested via the configurator or by e-mail.
| Thread size: | M3 |
|---|---|
| DK: | 0.3 |
| L: | 22.0 |
| DG: | 4.0 |
| ML: | 9.0 |
| ML (1): | 2.3 |
| DS: | 1.0 |
| DS (1): | 0.2 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 1 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 602030-8121-000 |
| Renishaw-No.: | A-5555-0273 |
