TH M6 H16 16 047
Termékszám:
THM6H1616047
11
TH M6 H16 16 047
Termékszám:
THM6H1616047
Straight Styli; base: stainless steel; stem: carbide; ball: carbide
Straight stylus with M6 thread, specially designed for hand-held measuring systems.
The tungsten carbide stem is extremely rigid, allowing a wide range of dimensions.
Pressure and impact resistant carbide balls complete the durable design.
Other dimensions can be requested via the configurator or by e-mail.

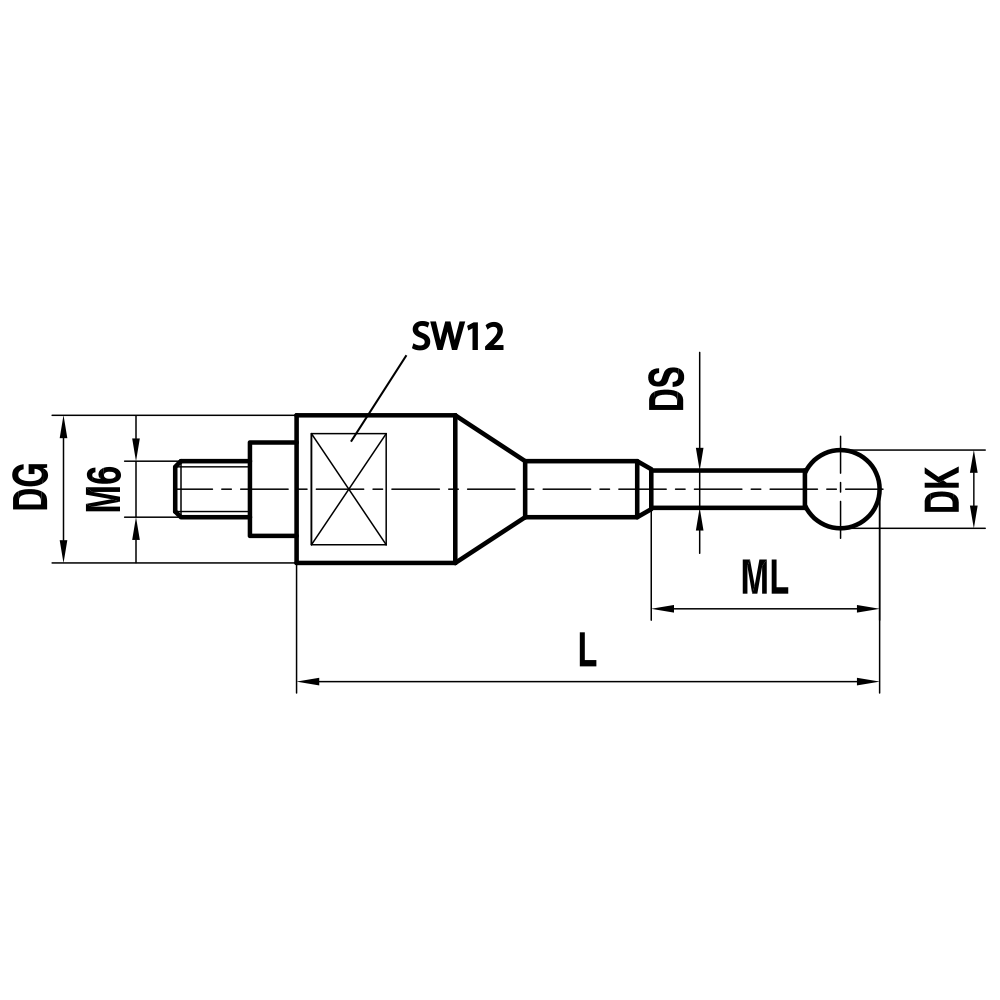

| Thread size: | M6 |
|---|---|
| DK: | 1.58 |
| L: | 47.0 |
| DG: | 16.0 |
| ML: | 9.0 |
| DS: | 1.0 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | carbide |
| Súly: | 37.3 |
| Compatible with: | Faro |
