TH M6 R08 16 049
Termékszám:
THM6R0816049
11
TH M6 R08 16 049
Termékszám:
THM6R0816049
Straight Styli; base: stainless steel; stem: carbide; ball: ruby
Straight stylus with M6 thread, specially designed for hand-held measuring systems.
The tungsten carbide stem is extremely rigid and allows a wide range of dimensions.
High quality ruby balls from Ø3.0mm to Ø12.0mm are used in these styli.
Other sizes can be requested via the configurator or by e-mail.

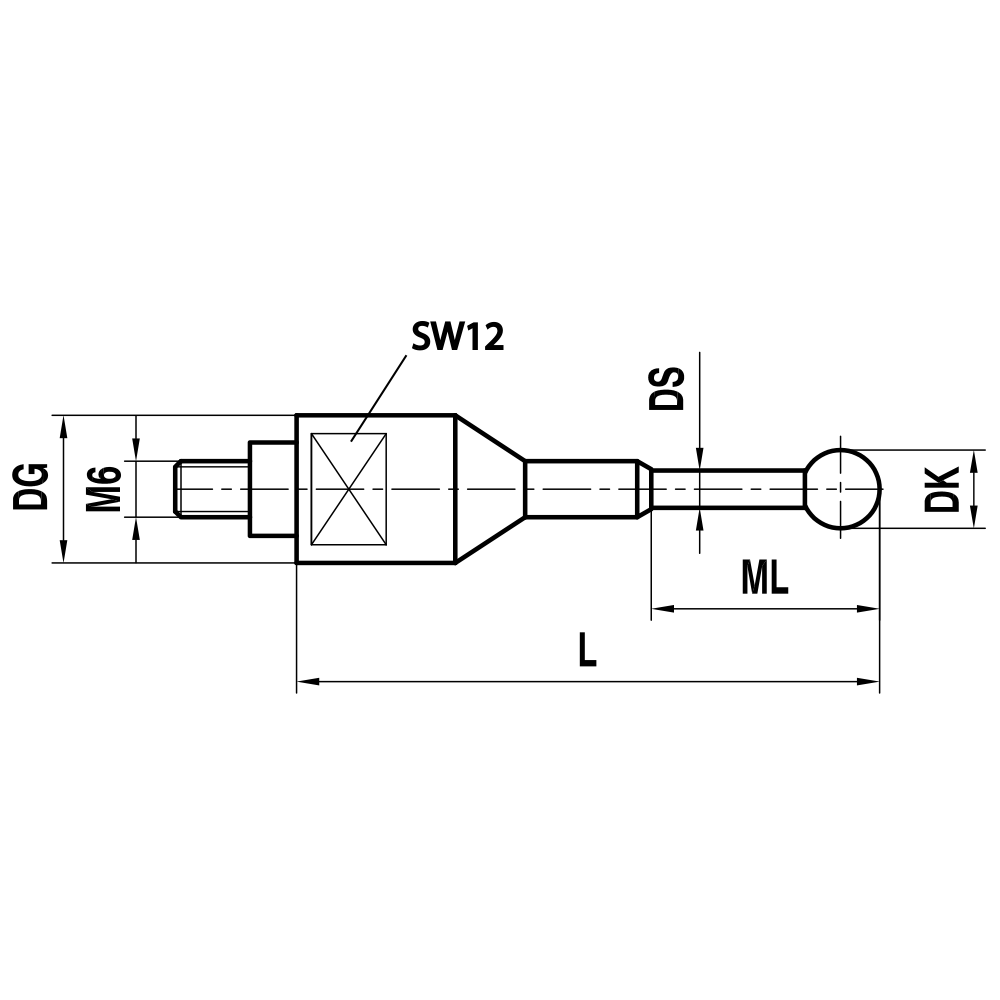

| Thread size: | M6 |
|---|---|
| DK: | 3.175 |
| L: | 49.0 |
| DG: | 16.0 |
| ML: | 11.0 |
| DS: | 2.0 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 38.3 |
| Compatible with: | Faro |
