TI M3 020 04 019
Termékszám:
TIM302004019
11
TI M3 020 04 019
Termékszám:
TIM302004019
Straight Styli / Star Styli; base: stainless steel; stem: stainless steel; ball: ruby
Straight stylus for clamping star styli. The probe provides an additional probing option in the Z direction. The thread is extended and adapted to the height of the star stylus.
Ruby balls are available as probing elements.

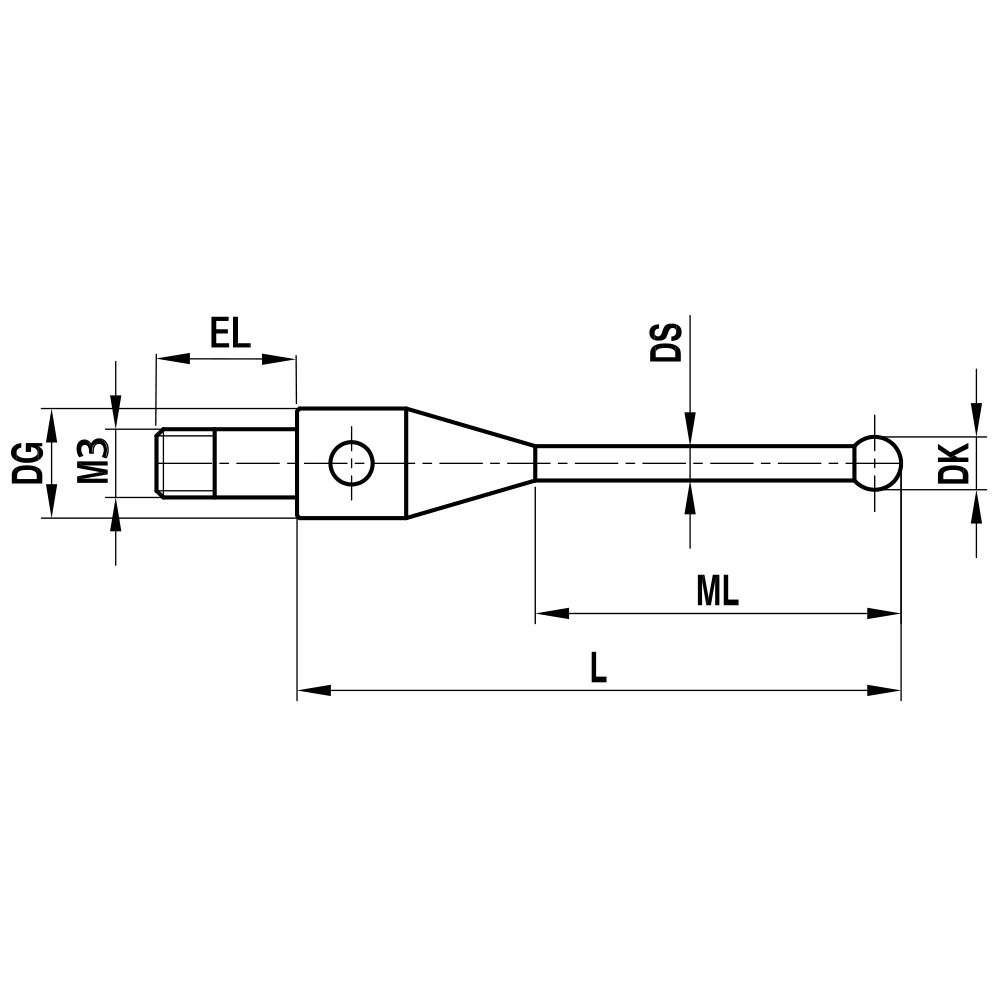

| Thread size: | M3 |
|---|---|
| DK: | 2.0 |
| L: | 19.0 |
| DG: | 4.0 |
| EL: | 6.0 |
| ML: | 12.0 |
| DS: | 1.4 |
| Stem Material: | stainless steel |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 0.9 |
