TI M5 005 11 040
Termékszám:
TIM500511040
11
Suitable for Zeiss: 602030-9074-000
Suitable for Zeiss: 602030-9074-000
TI M5 005 11 040
Termékszám:
TIM500511040

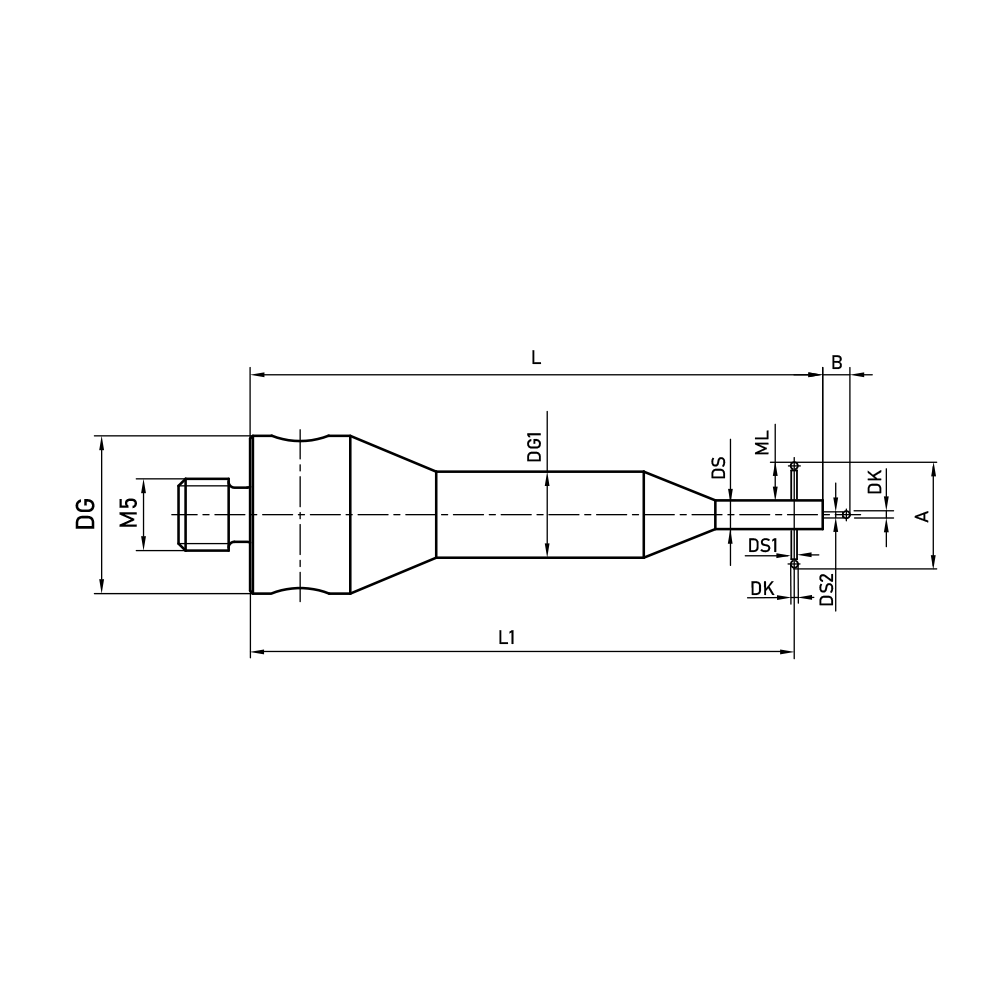

Star Styli ; base: stainless steel; stem: carbide; ball: ruby
The star styli in this product group are styli with three fixed arms. These styli are usually used to measure internal threads. Ruby balls are available in diameters from 0.5 to 2.3 mm, depending on the thread size.
| Thread size: | M5 |
|---|---|
| DK: | 0.5 |
| L: | 40.0 |
| customFields.itp_product_attributes_l_1: | 37.5 |
| DG: | 11.0 |
| DG (1): | 6.0 |
| ML: | 0.75 |
| DS: | 2.0 |
| DS (1): | 0.4 |
| DS (2): | 0.4 |
| A: | 3.5 |
| B: | 1.9 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 15.8 |
| Compatible with: | Zeiss |
| Zeiss No.: | 602030-9074-000 |
