TK M4 060 S7 053
Termékszám:
TKM4060S7053
11
TK M4 060 S7 053
Termékszám:
TKM4060S7053
Straight Styli; base: stainless steel; stem: ceramic; ball: ruby
Straight stylus for clamping star styli. It provides additional probing options in the Z direction. This stylus has an extended thread to match the height of the star stylus.
Ruby balls are available as probing elements.

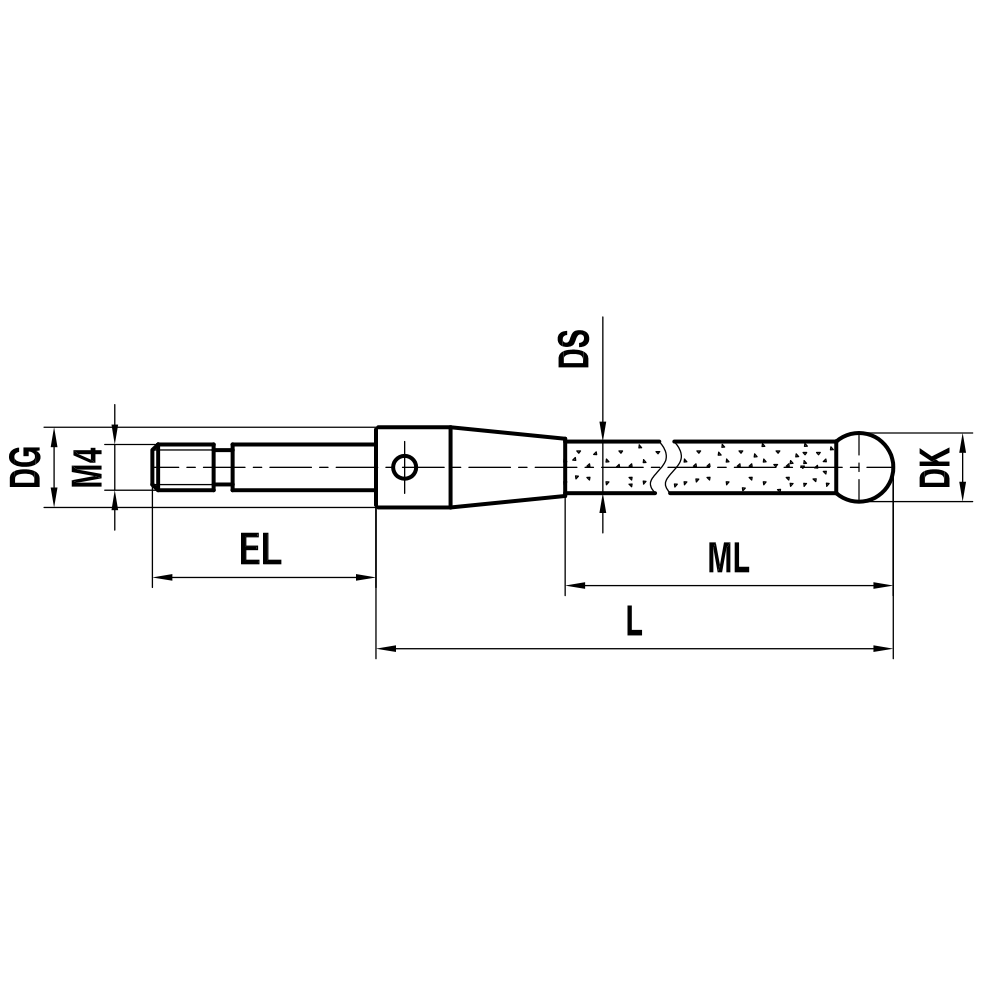

| Thread size: | M4 |
|---|---|
| DK: | 6.0 |
| L: | 53.0 |
| DG: | 7.0 |
| EL: | 19.5 |
| ML: | 36.5 |
| DS: | 4.5 |
| Stem Material: | ceramic |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 6.8 |
| Compatible with: | Renishaw |
| Renishaw-No.: | A-5000-7098 |
