VC M3 000 04 075
Termékszám:
VCM300004075
11
Suitable for Zeiss: 000000-1776-896, 626120-0021-000
Suitable for Zeiss: 000000-1776-896, 626120-0021-000
VC M3 000 04 075
Termékszám:
VCM300004075

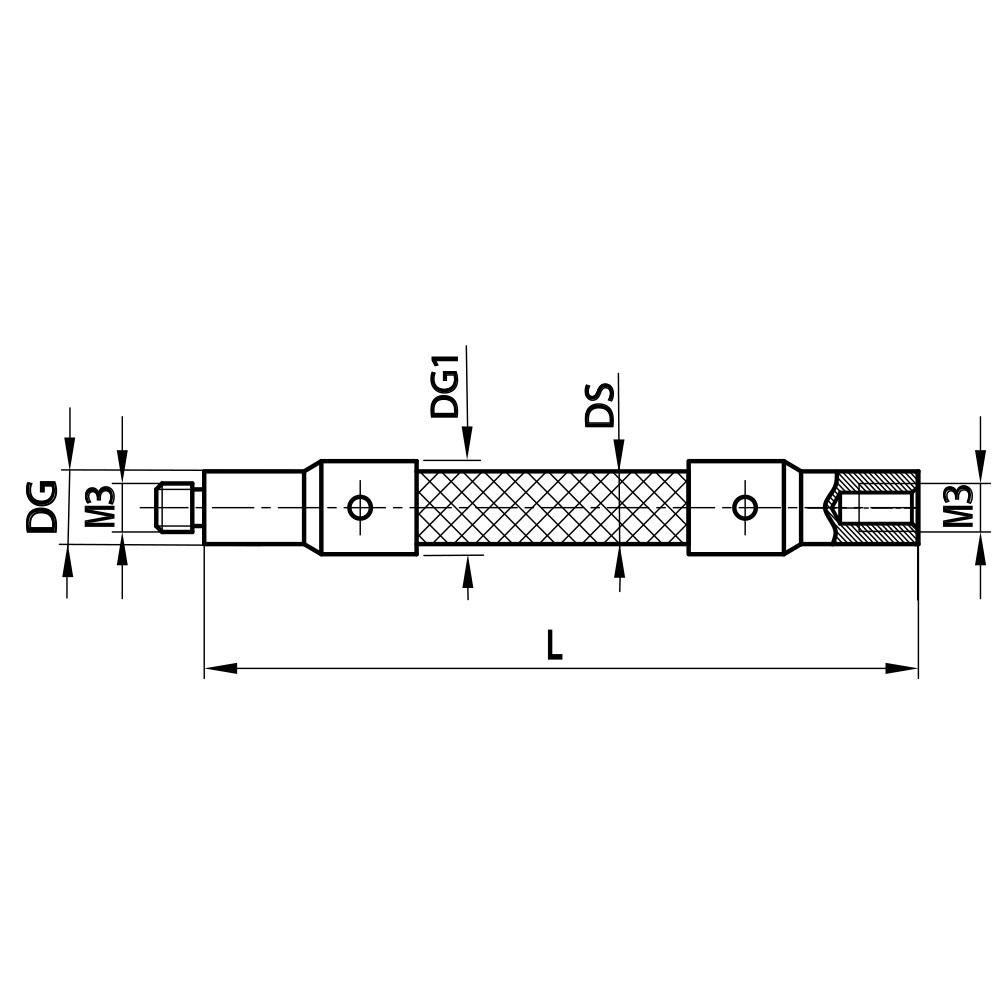

Extensions; base: stainless steel; stem: carbon fiber
Stylus extension with carbon fibre stem and stainless steel tips. Carbon fibre combines the best properties that are most important in metrology. These include extreme bending and torsional stiffness, very low weight and a very low negative coefficient of expansion.
| Thread size: | M3 |
|---|---|
| L: | 75.0 |
| DG: | 4.0 |
| DG (1): | 4.6 |
| DS: | 4.0 |
| Stem Material: | carbon fiber |
| Base Material: | stainless steel |
| Súly: | 3.2 |
| Compatible with: | Hexagon, Renishaw, Zeiss |
| Zeiss No.: | 000000-1776-896, 626120-0021-000 |
| Renishaw-No.: | A-5003-4864 |
| Hexagon-No.: | 03969446 |
