WT M5 000 20 040
Termékszám:
WTM500020040
11
Suitable for Zeiss: 600342-8103-000
Suitable for Zeiss: 600342-8103-000
WT M5 000 20 040
Termékszám:
WTM500020040

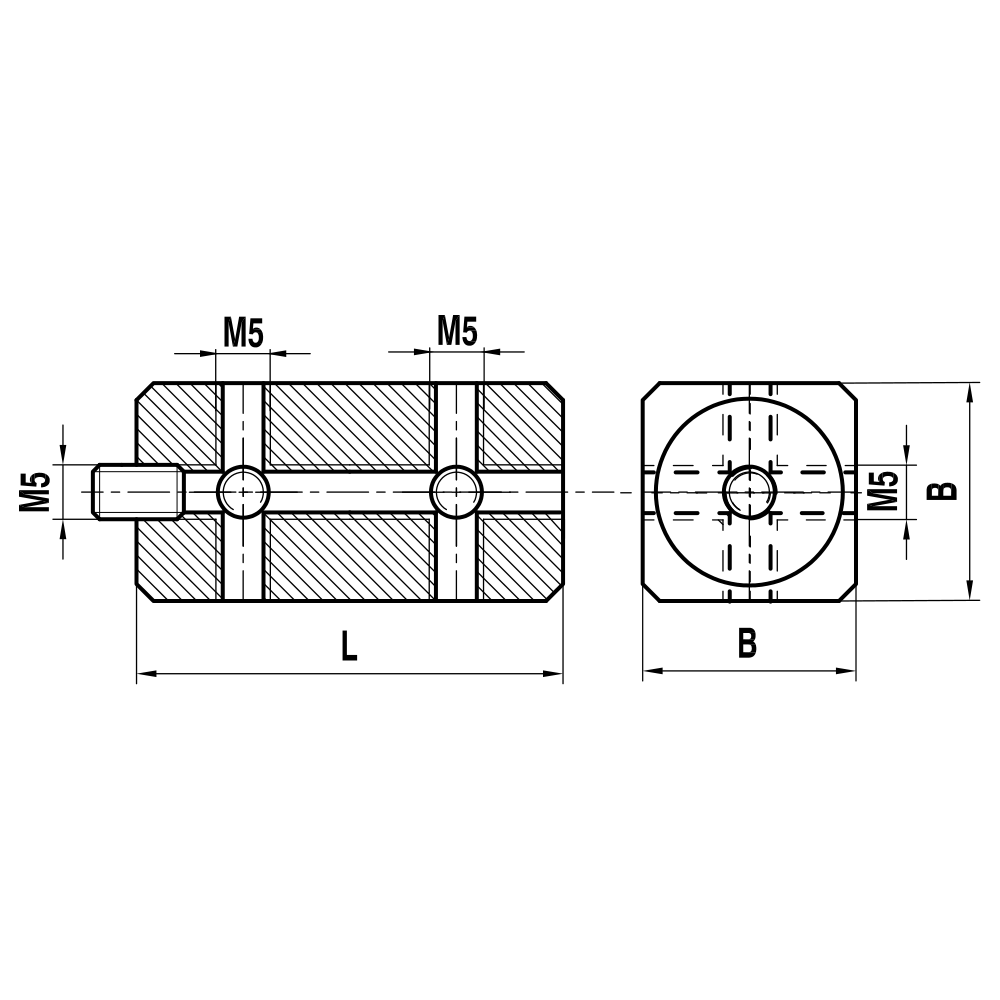

Adaptors / Holders; base: titanium
Cubes are important components in metrology that enable flexible and accurate styli positioning. They are particularly useful for building L-shaped and multi-arm styli, which have a wide range of applications in various measurement configurations. The ability to screw or clamp styli provides additional adaptability to specific requirements.
| Thread size: | M5 |
|---|---|
| L: | 40.0 |
| B: | 20.0 |
| Base Material: | titanium |
| Súly: | 61.3 |
| Compatible with: | Hexagon, Renishaw, Zeiss |
| Zeiss No.: | 600342-8103-000 |
| Renishaw-No.: | A-5003-5682, A-5555-0194 |
| Hexagon-No.: | M 00-1126-009-000 |
