WT M5 000 20 120
Termékszám:
WTM500020120
11
Suitable for Zeiss: 602030-0019-000
Suitable for Zeiss: 602030-0019-000
WT M5 000 20 120
Termékszám:
WTM500020120
Adaptors / Holders; base: titanium
Cubes are important components in metrology that enable flexible and accurate styli positioning. They are particularly useful for creating L-shaped and multi-arm styli, which have a wide range of applications in various measurement configurations. The ability to screw or clamp styli provides additional adaptability to specific requirements.

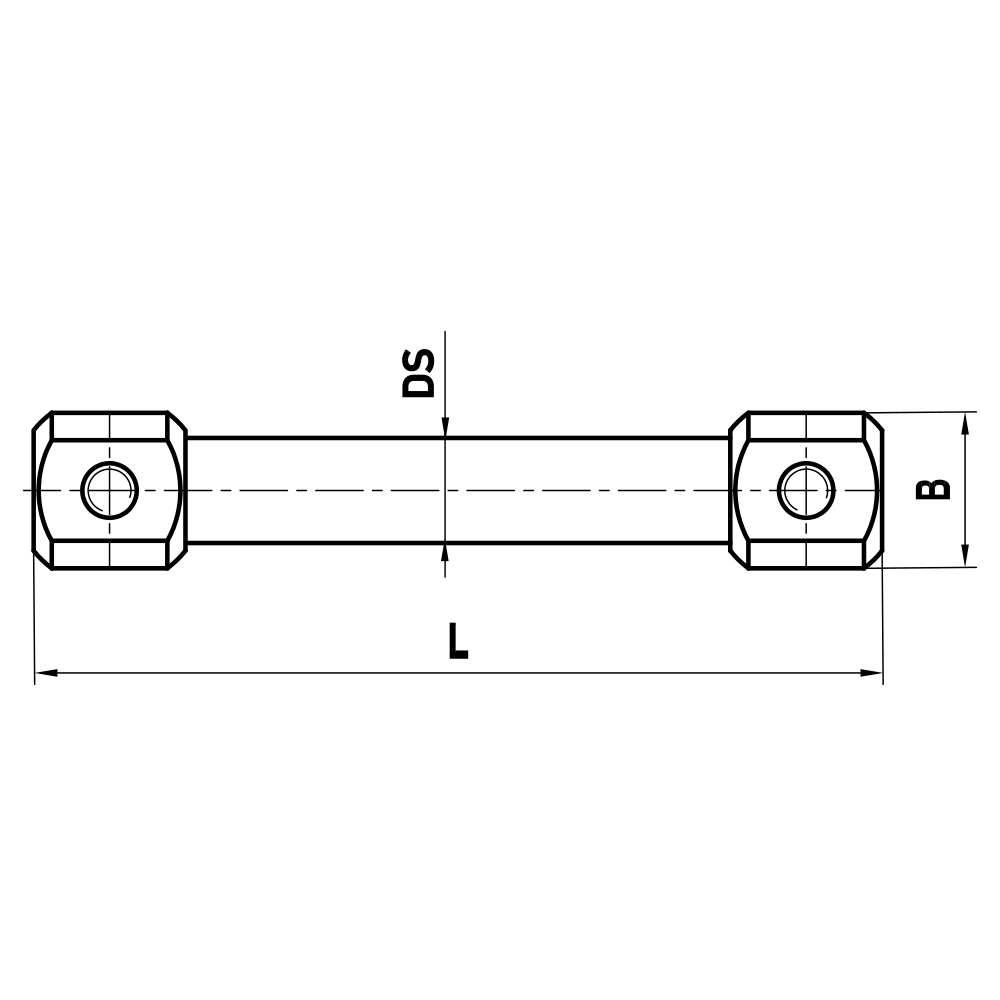

| Thread size: | M5 |
|---|---|
| L: | 120.0 |
| DS: | 11.0 |
| B: | 20.0 |
| Base Material: | titanium |
| Súly: | 74.5 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 602030-0019-000 |
| Renishaw-No.: | A-5555-0217 |
