ZR M3 020 04 020
Termékszám:
ZRM302004020
11
Suitable for Zeiss: 602030-8107-000
Suitable for Zeiss: 602030-8107-000
ZR M3 020 04 020
Termékszám:
ZRM302004020

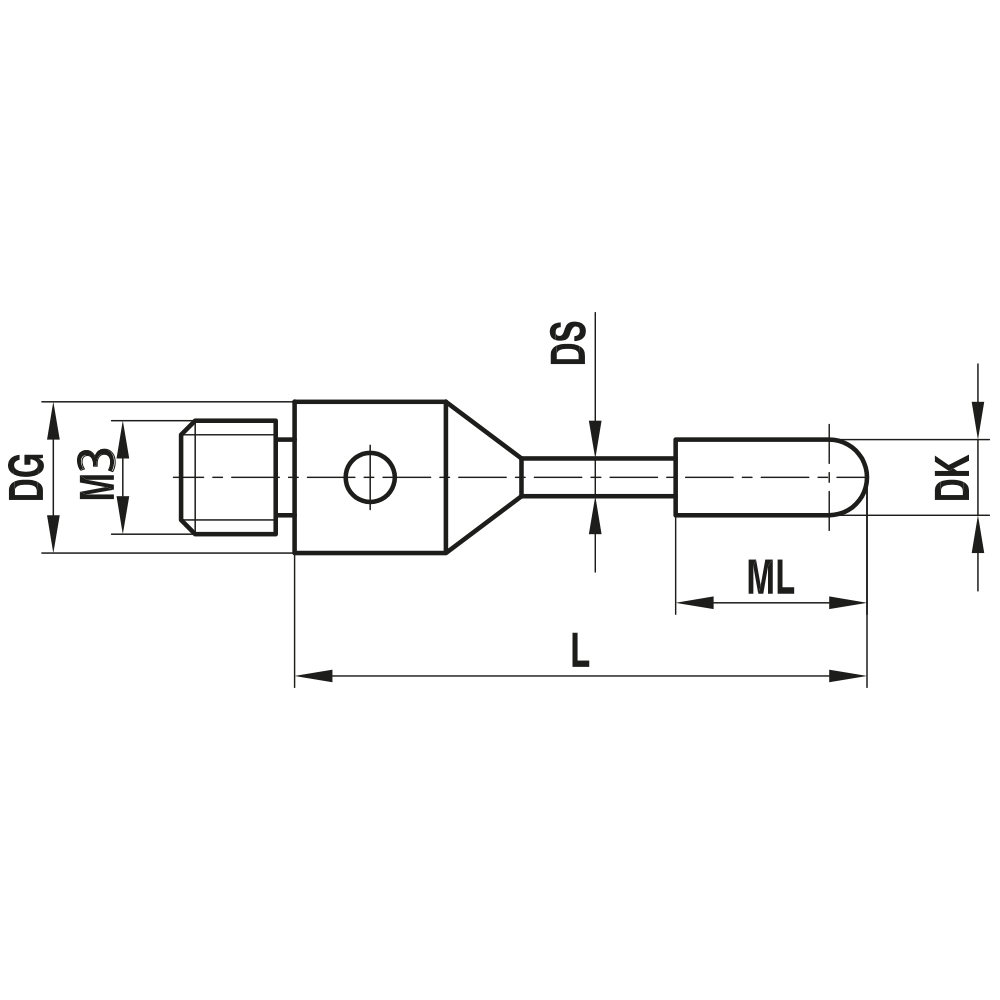

Cylinder Styli; base: stainless steel; stem: tungsten carbide; ball: ruby
These models include styli with cylindrical ruby tips, tungsten carbide stems and stainless steel holders. The measuring cylinder has very high dimensional accuracy and is designed with a spherical end to allow axial probing.
| Thread size: | M3 |
|---|---|
| DK: | 2.0 |
| L: | 21.0 |
| DG: | 4.0 |
| ML: | 7.2 |
| DS: | 1.0 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 0.8 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 602030-8107-000 |
| Renishaw-No.: | A-5004-0256 |
